Connection procedure (Ethernet)

<< Click to Display Table of Contents >>

Manual > Device Connection Guide > Allen Bradley >

Connection procedure (Ethernet)

overview

In this article, we will explain how to connect Allen Bradley devices via Ethernet.





Compatible models

List of compatible devices

Connection method

Series/Model etc.

Connection Unit

Supported drivers

Ethernet

ControlLogix Series

GuardLogix L8 Series

・1756-ENET

・1756-EN2T

Allen Bradley - Ethernet

ControlLogix



[Connection protocol]

private





Settings Dialog Details

Ethernet Common

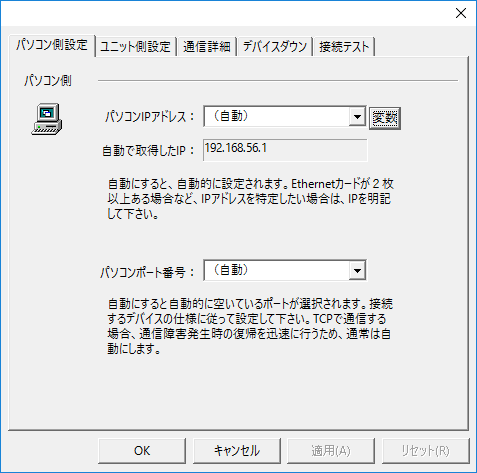

PC settings

c_plc_0545





•Computer IP address
The IP address of your computer. If you select Automatic, a default IP address will be set.



•Computer port number
Port number on the computer side. If you set it to "Automatic", an available port will be selected.
If you want to communicate using TCP instead of UDP, set it to Automatic.

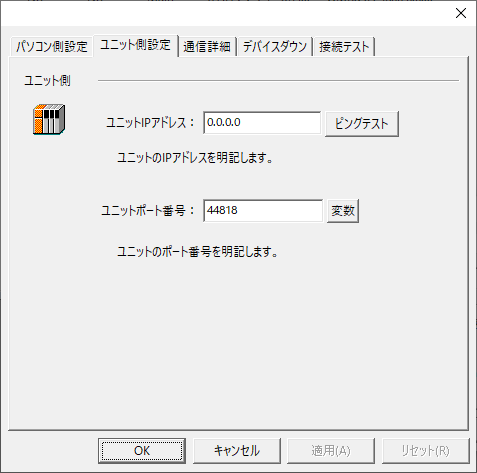

Unit side settings

c_plc_0546





•Unit IP Address
The IP address of PLC.



•Ping test
Perform a ping test. If successful, it means that the network is physically connected.



•Unit Port Number
PLC port number. You can also use an environment variable.

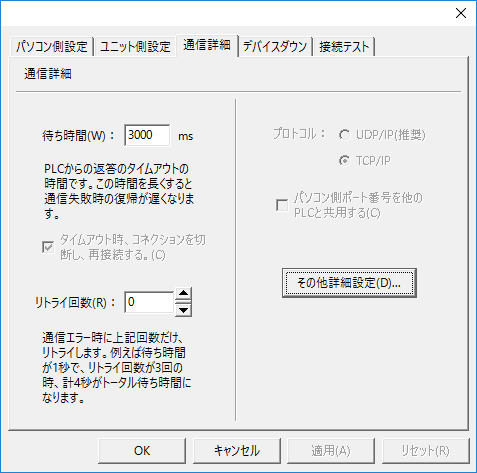

Communication details

c_plc_0547





•Waiting time
Response timeout from PLC.



•Retry count
When a communication error occurs, the system will retry the specified number of times.

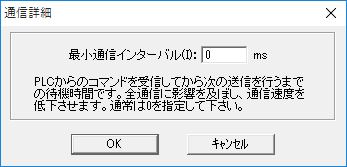

Other detailed settings

c_plc_0548





•Minimum Communication Interval
Specifies the waiting time on the PC side after receiving a device value from PLC and before the next transmission.
