overview

FLEX-PC This is a setting example for RS-232C connection using the loader port included with the N series.

Model used

item	Model etc.
PLC	NJ-CPU-B16

Configuration environment

item	environment
OS	WindowsXP Professional 32Bit

Configuration details

item	setting	Setting items	Configuration Example
PC settings	Unit Settings	COMPort	Communication port number to connect to
		Transmission speed	19200bps
		Byte Size	8bits
		Stop bits	1bits
		parity	Odd

* Most of the settings on the computer will be adjusted to match the settings on the unit.

For NJ-CPU-B16, the communication settings above (19200bps/8bit/1bit/odd number) are set by default, so you only need to match the communication port number to which the PLC is connected.

The connection is made directly to the loader port attached to the CPU, and the parameters at the time of connection are fixed, so there are no special items to set on the unit side.

PC settings

Use the Server application to connect to the PLC for which you have set up communications.

1.Right-click "Application" - "Driver" in the tree and select Add Driver.

2.Select the following units from the displayed driver list and add them:
c_plc_0331

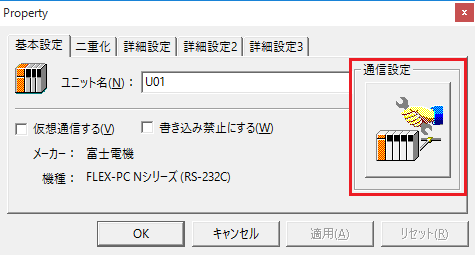

3.Open the properties of the added unit (U01) and click Communication Settings.
c_plc_0332

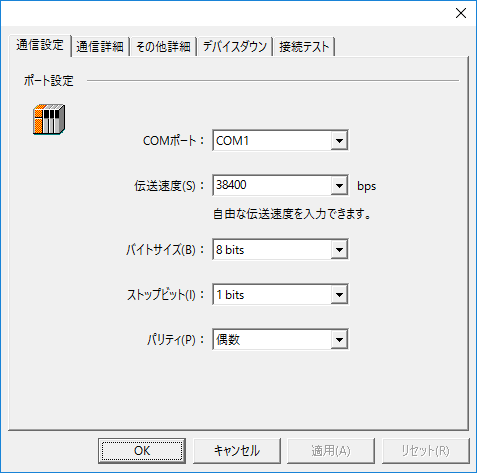

4.Set "Communication Settings" as follows:
c_plc_0333 .

setting	Setting contents
COMPort	Communication port number to connect to
Transmission speed	38400
Byte Size	8bits
Stop bits	1bits
parity	Even

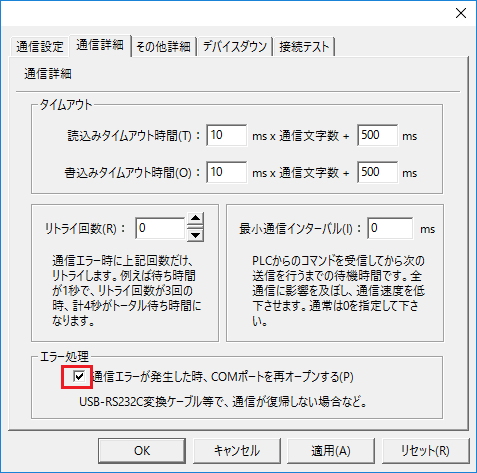

5.USB-RS-If you are using a 232C conversion cable, the COM port may be locked in the event of a communication error, so check the reopen setting.
c_plc_0334

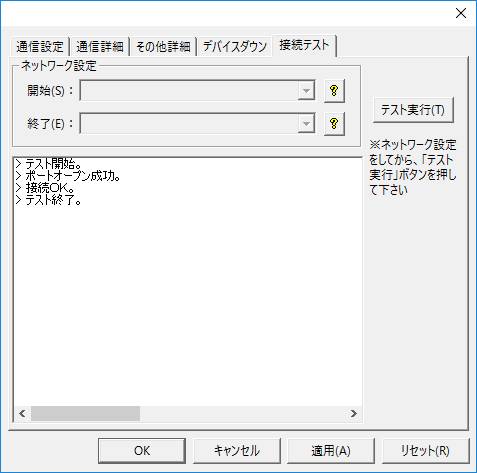

6.Perform a connection test to check the connection
c_plc_0335

If a message such as "Connection OK" is displayed, the connection is confirmed to be OK.
