Connection Procedure

overview

This section explains the procedure for setting up tags to link with Excel from Microsoft using the Excel unit of the communications driver.





Target Applications

List of compatible connected applications



Compatible Applications

Supported drivers

Microsoft Excel2016-2024

Microsoft - Microsoft Office

Excel







Settings Dialog Details

Excel

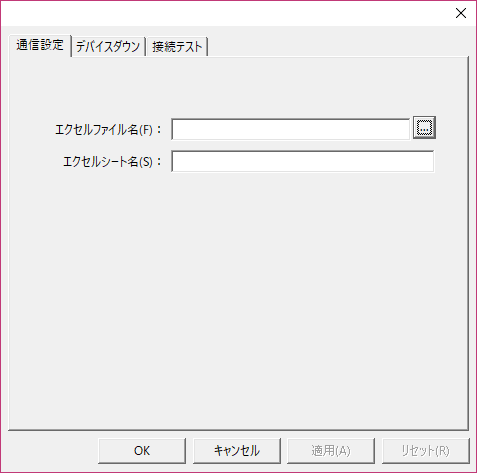

Communication Settings

c_plc_0852





•Excel File Name
Specify the Excel file name. You can specify the relative path starting from the application root folder.



•Excel Sheet Name
Specify the Excel sheet name.

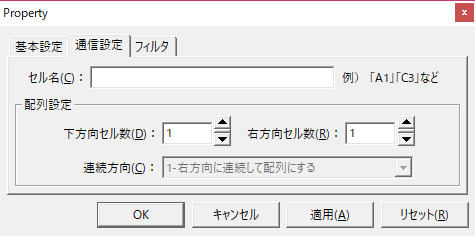

Tag communication settings

c_plc_0853





•Cell Name

Specify the cell name, such as "A1" or "C3".



•Number of cells down

•Number of cells in the upper direction

This is the definition of the array. For example, if the number of cells below is 3 and the number of cells to the right is 2, it will be an array of 6.

c_plc_0854



•Continuous Direction

c_plc_0855
