Manual > Server Creation Guide > Events > Event Applications > Enabling an event only while the bit is ON

overview

This section explains how to enable an event only while the bit signal is ON.

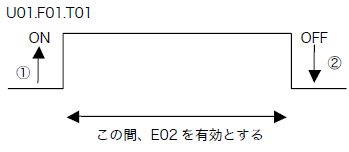

As an example, we will enable event "E02" while "U01.F01.T01" is ON.

c_event_0056

Download the sample

The creation examples shown on this page are provided with samples.

The sample can be downloaded from below.

Configuration file: event_sample01.txt

Setting contents

Tag configuration

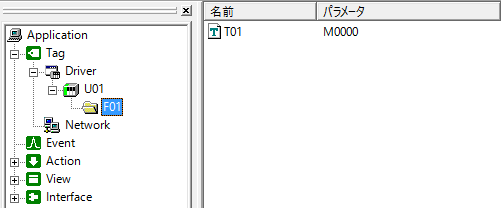

Set the bit tag that will trigger the event to be enabled or disabled.

Here, set it to "U01.F01.T01".

c_event_0057

Action Settings

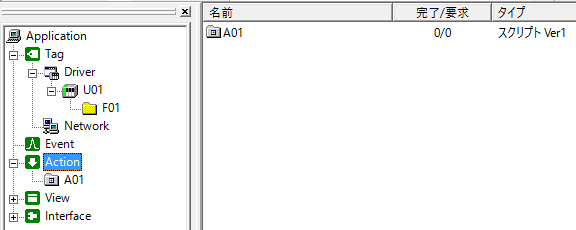

Add script Ver1 action "A01".

c_event_0058

The script describes the following processes:

//Event/E02!Enable = U01.F01.T01

Event Settings

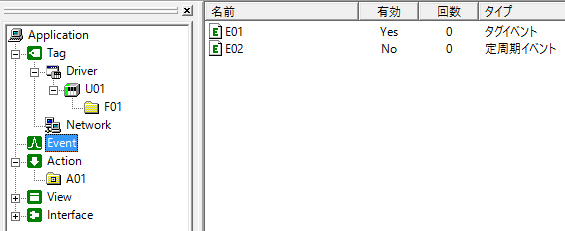

Add Tag event "E01" and Periodic event "E02".

c_event_0059

E01:

•Tag "U01.F01.T01"

•Comparison condition "Tag value changed"

•Execution action "A01"

E02:

This is the event that will be the target of the switch.

Check "Disable" to disable the initial state.

Commentary

c_event_0060

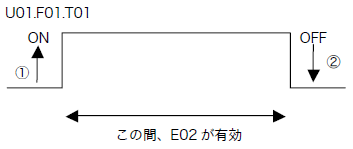

When you run this sample, the following will happen:

▪When bit is ON

1.When U01.F01.T01 becomes TRUE, Tag event "E01" occurs and script Ver1 action "A01" is executed.

2.In "A01", the formula "//Event/E02!Enable = U01.F01.T01" is executed, and the event "E02" is enabled.

▪When bit is OFF

1.When U01.F01.T01 becomes FALSE, Tag event "E01" occurs and script Ver1 action "A01" is executed.

2.In "A01", the formula "//Event/E02!Enable = U01.F01.T01" is executed, and the event "E02" is disabled.

The event is enabled only while the bit is ON.
