DDE Interface Basics

<< Click to Display Table of Contents >>

Manual > Server Creation Guide > Interface > DDE Interface >

DDE Interface Basics

Basic Settings

The DDE interface basic settings allow you to configure the following items:



Interface Specifications

Basic Settings

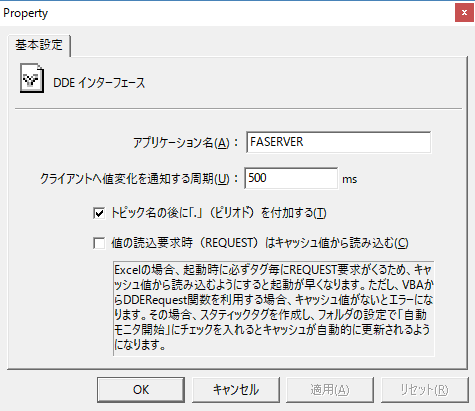

c_interface_0173


Application Name
Specifies the application name for the DDE interface.


The period for notifying the client of value changes
Specifies the frequency at which value change notifications are sent to the DDE client.



Add a period after the topic name
For this setting, please refer to "Use as DDE Server".


When a value is requested (REQUEST), it is read from the cache.
In the case of Excel, a read request (REQUEST) is sent for each tag at startup, so checking this item to read from the cache value will speed up startup. However, when using the DDERequest function from VBA, an error will occur if there is no cache value. In that case, create Static tag and check "Start automatic monitoring" in the folder settings to have a server cache on the server side, so the cache will be updated automatically.
