overview

This is a setting example for connecting to the HIDIC-S10V series via Ethernet.

Model used

item	Model etc.
PLC	HIDIC-S10V
Communication Unit	ET.NET (LQE520)

Configuration environment

item	environment
OS	WindowsXP Professional 32Bit
tool	S10V ET.Net System

Configuration details

item	setting	Setting items	Configuration Example
PLC side settings	Set with tools	communication	10BASE-T
		IP address	192.168.0.100
		Subnet mask	255.255.255.0
		Port number	4302
PC settings	Unit Settings	IP address	192.168.0.1
		Port number	Automatic
		Communication Protocol	TCP/IP (fixed)

* Most of the settings on the computer will be adjusted to match the settings on the unit.

PLC side settings

Configure the settings in the "ET.Net system." The settings are configured in the ET.Net system.

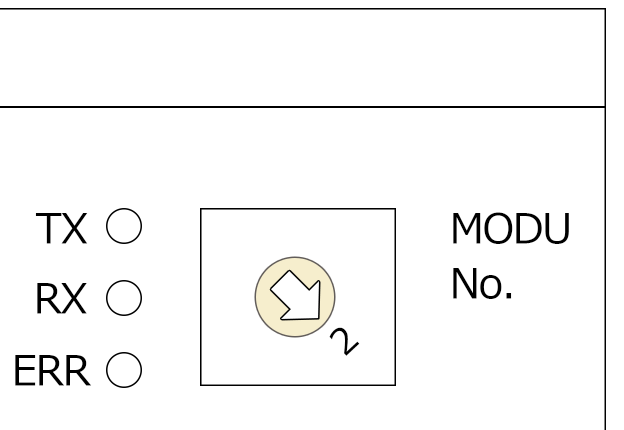

1.Set the front switch of the "ET.NET" unit as follows:

c_plc_0374

switch	Setting contents
MODU No.	2

Set the communication method with the front switch. 2 communicates at "10BASE-T". If you want to communicate at "10BASE-5", set it to 0. For details, please refer to the "EN.NET" manual.

2.Start the ET.Net system and connect to PLC
c_plc_0375

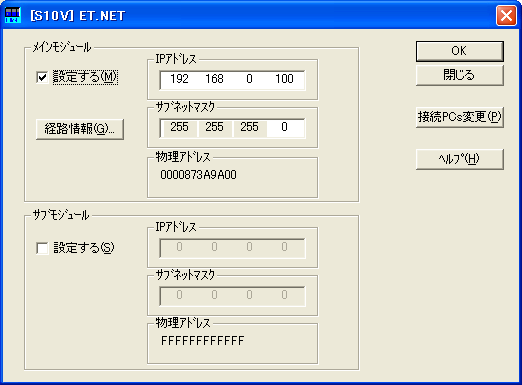

3.Verify that the connection is successful and that ET.Net starts normally, then set the IP address and subnet mask.
After completing the settings, press the "OK" button and then press "Close".
c_plc_0376

setting	Setting contents
IP address	192.168.0.100
Subnet mask	255.255.255.0

4.Reset PLC to reflect the settings.

PC settings

Use the Server application to connect to the PLC for which you have set up communications.

1.Right-click "Application" - "Driver" in the tree and select Add Driver.

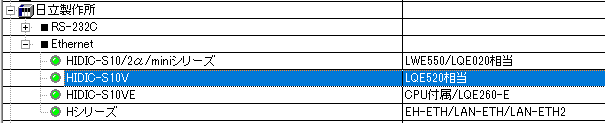

2.Select the following units from the displayed driver list and add them:
c_plc_0377

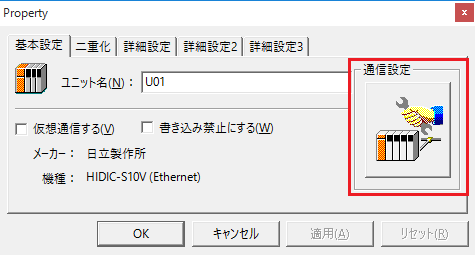

3.Open the properties of the added unit (U01) and click Communication Settings.
c_plc_0378

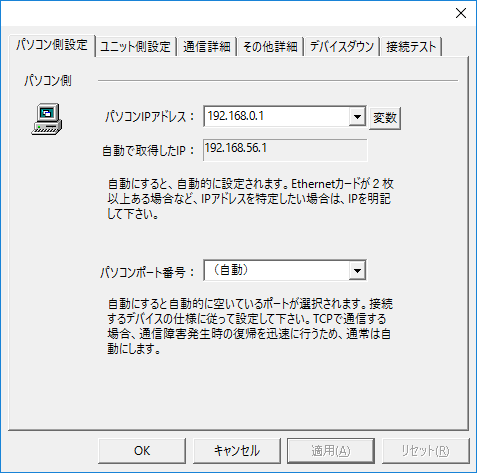

4.Configure the following in "PC Settings"
c_plc_0379

setting	Setting contents
Computer IP address	192.168.0.1
Computer port number	Automatic

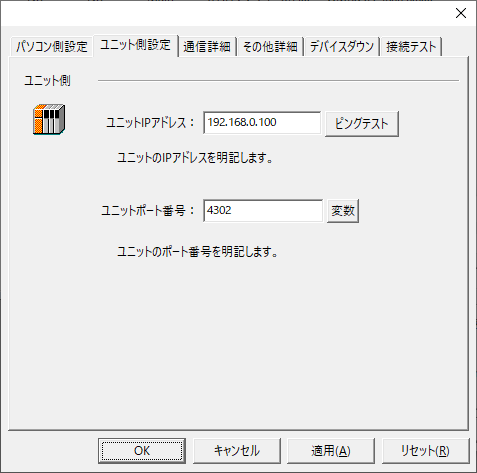

5.Set the following in "Unit side settings"
c_plc_0380

setting	Setting contents
Unit IP Address	192.168.0.100
Unit Port Number	4302

6.Select "Ping Test" to check if the ping goes through normally.
If you see a message like "Ping test is success～", the test was successful.

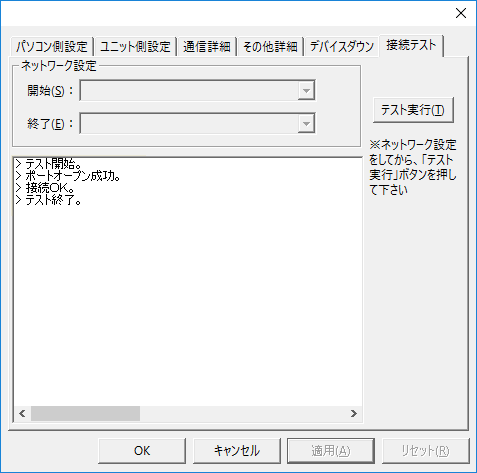

7.Perform a connection test to check the connection
c_plc_0381

If a message such as "Connection OK" is displayed, the connection is confirmed to be OK.
