IPLink Server

overview

Connect to the IPLink server. The following three pieces of information are required to connect to the IPLink server.



IP Address: The IP address (node name) of the IPLink server to connect to.

Port number: The port number of the IPLink server to connect to.

Item Name: Specify the tag path defined on the IPLink server to connect to.





Settings Dialog Details

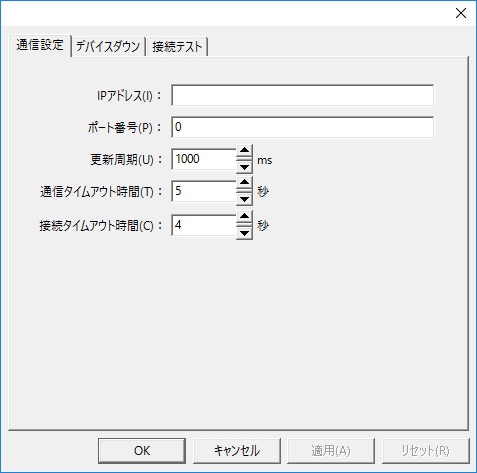

Communication Settings

c_plc_0751





•IP address
IPLinkThe IP address of the server.



•Port number
The port number of the IPLink server.



•Update Cycle
The interval at which the value is updated.



•Communication timeout period
This is the TCP/IP timeout period during communication. Set it longer depending on your network environment.



•Connection timeout period
The TCP/IP timeout period for connection.

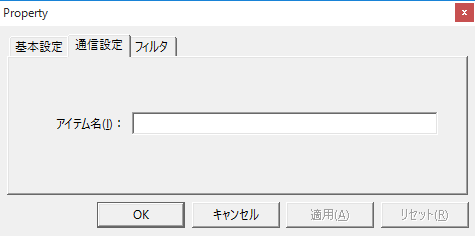

Tag communication settings

c_plc_0752





•Item Name
For the item name, specify the tag path defined on the IPlLink server side.





attention

If the destination tag is an array, add ", the number of arrays" to the end of the tag path.

For an array of 10 items, use "U01.F01.T01,10"
