Connection method

Series/Model etc.

Connection Unit

Supported drivers

Ethernet

C Series

・C200HW-PCU01 equivalent

Omron - Ethernet

C Series (FINS)

[Connection protocol]

FINS

CVM1/CV Series

・CV500-ETN01 equivalent

Omron - Ethernet

CV/CVM1 Series (FINS)

[Connection protocol]

FINS

CS1/CJ1/CJ2/NJ/NX1P/NX1

series

・CS1W-ETN01

・CS1W-ETN21

・CS1J-ETN21

・Equivalent to CPU attached port

Omron - Ethernet

CS1/CJ1/CJ2/NJ/NX1P/NX1
Series (FINS)

[Connection protocol]

FINS

CP1E/CP1H/CP1L/CP2E

series

・CP1W-CIF41

・Equivalent to CPU attached port

Omron - Ethernet

CP1E/CP1H/CP1L/CP2E (FINS)

[Connection protocol]

FINS

For combinations of CPU units and link units, please check with the device manufacturer to see if the model combination is actually possible. Also, please check whether communication is possible with the protocol used when connecting with our company for that combination.

series

Model etc.

C Series

C200HX, C200HG, C200HE

etc.

CV Series

C500-PS222, CV500-PS221, CVN1

etc.

CS1 Series

CS1G-CPU42H, CS1G-CPU43H, CS1G-CPU44H, CS1G-CPU45H, CS1H-CPU63H, CS1H-CPU64H , CS1H-CPU65H, CS1H-CPU66H, CS1H-CPU67H, CS1D-CPU65H, CS1D-BC052, CS1D-BC082S, CS1D-BI092

etc.

CJ1 Series

CJ1G-CPU42P, CJ1G-CPU43P, CJ1G-CPU45P, CJ1M-CPU11, CJ1M-CPU12, CJ1M-CPU13, CJ1M-CPU21, CJ1M-CPU22, C J1M-CPU23, CJ1M-CPU11-ETN, CJ1M-CPU12-ETN, CJ1M-CPU13-ETN, CJ1M-CPU21, CJ1M-CPU22, CJ1M-CPU23

etc.

CJ2 Series

CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15, CJ2M-C PU31, CJ2M-CPU32, CJ2M-CPU33, CJ2M-CPU34, CJ2M-CPU35, CJ2H-CPU64- EIP, CJ2H-CPU65-EIP, CJ2H-CPU66-EIP, J2H-CPU67-EIP, CJ2H-C PU68-EIP, CJ2H-CPU64, CJ2H-CPU65, CJ2H-CPU66, CJ2H-CPU67, CJ2H-CPU68

etc.

CP1E Series

CP1E-E10DR-A, CP1E-E10DR-D, CP1E-E10DT-A, CP1E-E10DT-D, CP1E-E14DR-A, CP1E-E14SDR-A, CP1E-E2 0DR-A, CP1E-E20SDR-A, CP1E-E30DR-A, CP1E-E30SDR-A, CP1E-E40DR-A, CP1E-E40SDR-A, CP1E-E60SDR- A, CP1E-N14DR-A, CP1E-N14DR-D, CP1E-N14DT-A, CP1E-N14DT-D, CP1E-N14DT1-D, CP1E-N20DR-A, CP1E- N20DR-D, CP1E-N20DT-A, CP1E-N20DT-D, CP1E-N20DT1-D, CP1E-N30DR-A, CP1E-N30DR-D, CP1E-N30DT-A, CP1E-N30DT-D, CP1E-N30S1DR-A, CP1E-N30S1DT-D, CP1E-N30SDR-A, CP1E-N30SDT-D, CP1E-N40DR-A, CP 1E-N40DR-D, CP1E-N40DT-A, CP1E-N40DT-D, CP1E-N40DT1-A, CP1E-N40S1DR-A, CP1E-N40S1DT-D, CP1E-N 40SDR-A, CP1E-N40SDT-D, CP1E-N60DR-A, CP1E-N60DR-D, CP1E-N60DT-A, CP1E-N60DT-D, CP1E-N60DT1- D, CP1E-N60S1DR-A, CP1E-N60S1DT-D, CP1E-N60SDR-A, CP1E-N60SDT-D, CP1E-NA20DR-A, CP1E-NA20DT-D

etc.

CP1L Series

CP1L-EL20DR-D,CP1L-EL20DT-D,CP1L-EM30DR-D,CP1L-EM30DT-D,CP1L-EM40DR-D,CP1L-EM40DT-D,CP1L-L10DR-A,CP1L-L10DT-A,CP1L-L10DT1-D,CP1L-L14DR-A,CP1L-L14DR-D,CP1L-L14DT-A,CP1L-L14DT-D,CP1L-L14DT1-D,CP1L-L20DR-A,CP1L-L20DR-D,CP1L-L20DT-A,CP1L-L20DT-D,CP1L-L20DT1-D,CP1L-M30DR-A,CP1L-M30DR-D,CP1L-M30DT-A,CP1L-M30DT-D,CP1L-M40DR-A,CP1L-M40DR-D,CP1L-M40DT-A,CP1L-M40DT-D,CP1L-M60DR-A,CP1L-M60DR-D,P1L-M60DT-A,CP1L-M60DT-D,CP1L-M60DT1-D

etc.

CP1H Series

CP1H-X40DR-A,CP1H-X40DT-D,CP1H-XA40DR-A,CP1H-XA40DT-D,CP1H-Y20DT-D

etc.

CP2E Series

CP2E-N14DR-A,CP2E-N14DT-A,CP2E-N14DR-D,CP2E-N14DT-D,CP2E-N14DT1-D,CP2E-N20DR-A,CP2E-N20DT-A,CP2E-N20DR-D,CP2E-N20DT-D,CP2E-N20DT1-D,CP2E-N30DR-A,CP2E-N30DT-A,CP2E-N30DR-D,CP2E-N30DT-D,CP2E-N30DT1-D,CP2E-N40DR-A,CP2E-N40DT-A,CP2E-N40DR-D,CP2E-N40DT-D,CP2E-N40DT1-D,CP2E-N60DR-A,CP2E-N60DT-A,CP2E-N60DR-D,CP2E-N60DT-D,CP2E-N60DT1-D

etc.

NJ Series

NJ301-1100, NJ301-1200, NJ501-1300, NJ501-1400

etc.

NX1P Series

NX1P2

etc.

NX1 Series

NX102

etc.

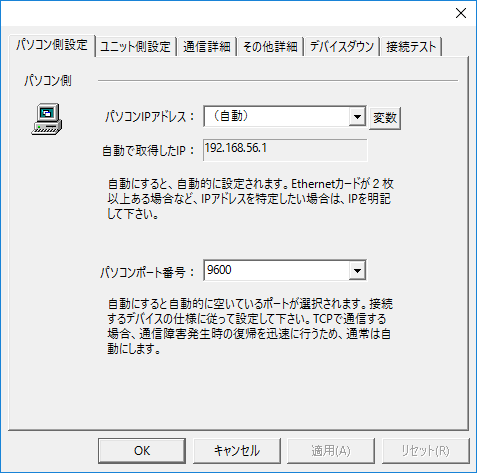

PC settings

•Computer IP address
The IP address of your computer. If you select Automatic, a default IP address will be set.

•Computer port number
This is the port number on the computer side. If you set it to "Automatic", an available port will be selected. If you want to communicate using TCP instead of UDP, set it to Automatic.

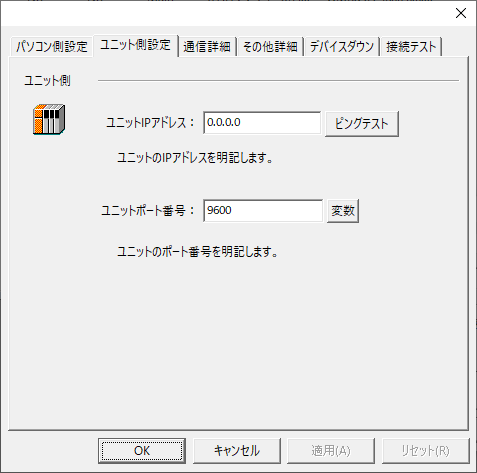

Unit side settings

•Unit IP Address
The IP address of PLC.

•Ping test
Perform a ping test. If successful, it means that the network is physically connected.

•Unit Port Number
The port number of the PLC. You can also use an environment variable.

Communication details

•Waiting time
Response timeout from PLC.

•Retry count
When a communication error occurs, the system will retry the specified number of times.

•protocol
Select UDP or TCP.

•Share the PC port number with other PLCs
Set this when you want to share the PC port number with another PLC.

Other detailed settings

•Minimum Communication Interval
Specifies the waiting time on the PC side after receiving a device value from PLC and before the next transmission.

•To make it writable, allow changes...
When the Omron PLC is operating in run mode, values cannot be written.
In such a case, you need to switch to monitor mode. By making this setting, you can issue a command to switch.
