What is a view?
A view is a function that allows you to display online operations and values by adding tag lists, tag monitors, etc. from the tree on the left side of the screen.
View Area

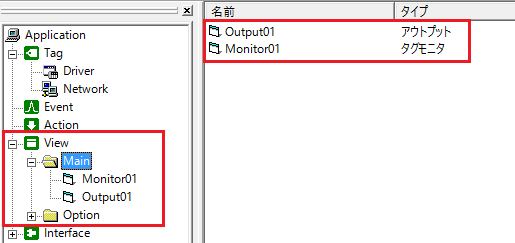

You can select the view to be displayed on the screen from the tree on the left side of the screen. There are three views: "Multi View", "Main View" and "Footer View", and each can be displayed.

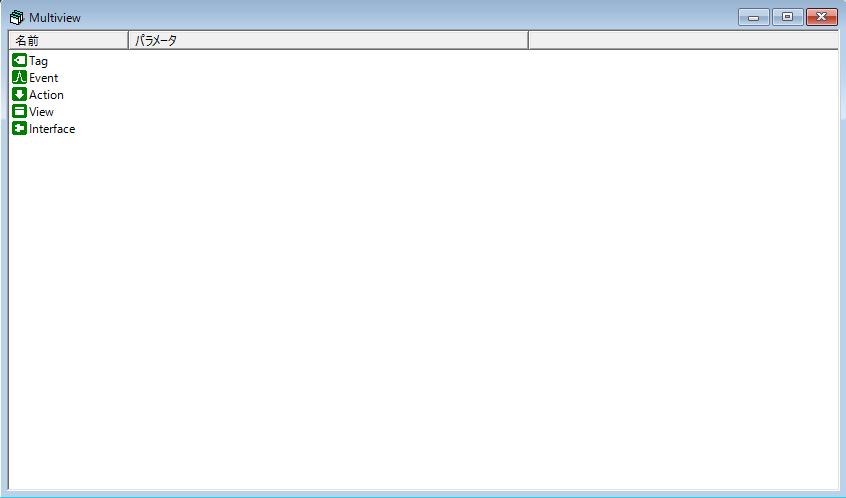

Multiview
This is a list view in which the displayed content changes dynamically depending on the selection made from the tree on the left side of the screen. This view is displayed by default in the space on the right side of the screen. You can also show or hide it by selecting "View" - "Multiview" from the menu.

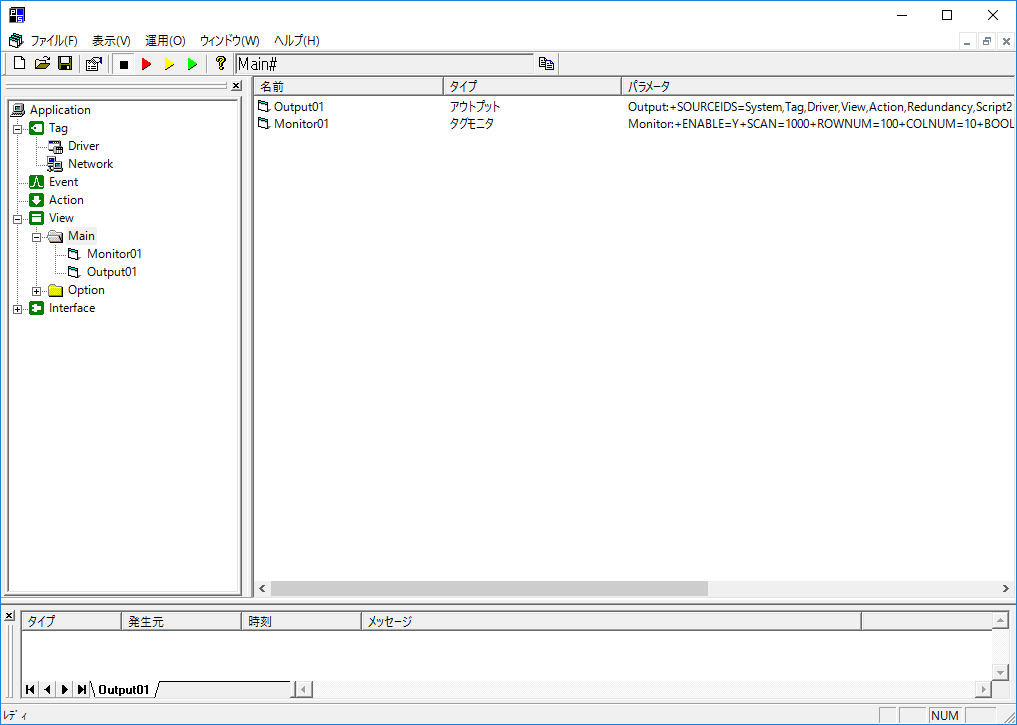

Main View

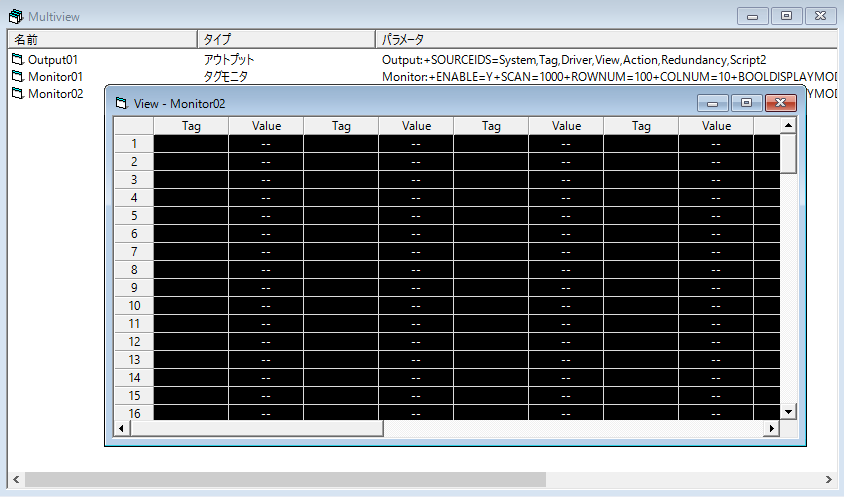

This is a view that can be displayed in the space on the right side of the screen separately from the multi-view. You can add it freely as needed. It can display "Output", "Tag List", "Tag Monitor", etc.

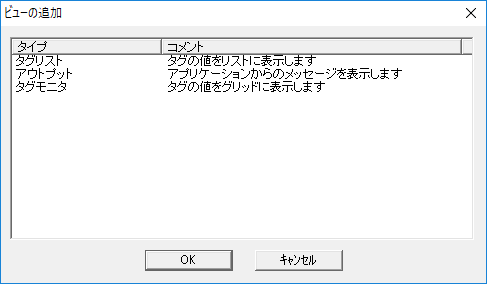

To add a main view, right-click "View/Main" in the left tree to display the Add View dialog, and select the view you want to add from the dialog.
Select the view you want to add from the dialog.

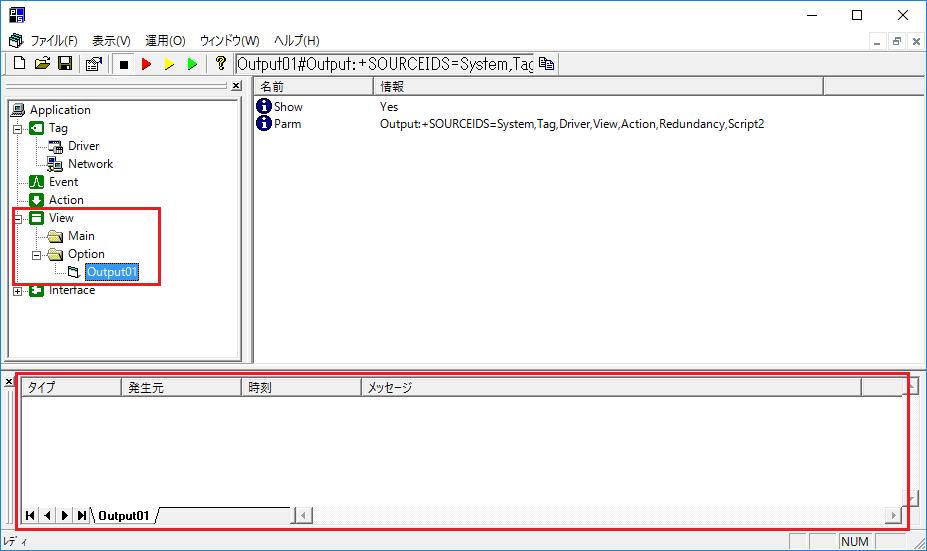

Footer View
This view is displayed at the bottom of the screen. The output view is displayed by default. You can freely add footer views as needed. To add a footer view, right-click "View/Option" in the tree on the left of the screen and add it from the menu that appears, or right-click the following part of the footer view and add it from the menu that appears.
