Measurement conditions
The communication performance listed on this page was measured under the following conditions.
•The measurement is performed using the "update cycle measurement function" of our application.
•Log 100 communications with the word register on PLC and calculate the average communication time per communication.
•Prepare one test PC and connect it to only one PLC. Do not communicate with multiple PLCs at the same time.
•Tests are performed without performing control processing such as ladder logic on the PLC side.
•The unit of measurement time is milliseconds (ms).
The PC environment for the test is as follows:
■ Test PC environment
CPU |
:Intel(R) Core(TM) i7 CPU K875 @2.93GHz(4Core) |
Memory |
：4GB |
HDD |
: 7200rpm |
OS |
:Widows10 Pro (64bit) |
Product Revision |
：Rev 1 |
Download the sample
The communication performance shown on this page was measured using the following sample application.
The sample can be downloaded from below.
|
You can download a detailed report from "Communication Performance" on our website. |
Communication Performance
The communication performance measurement results are as follows:
■Mitsubishi Electric Q Series Ethernet
Model used: Q13UDVCPU
Communication area: D0000 - D9999

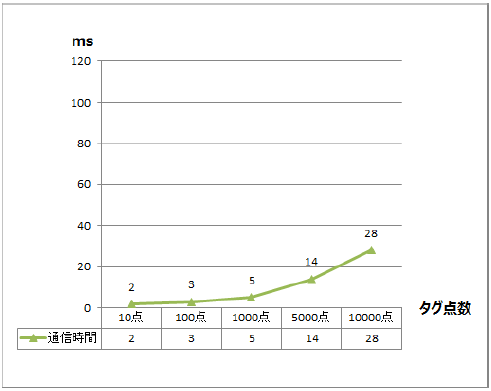

・In the case of one connection
|
|
||||||||||||

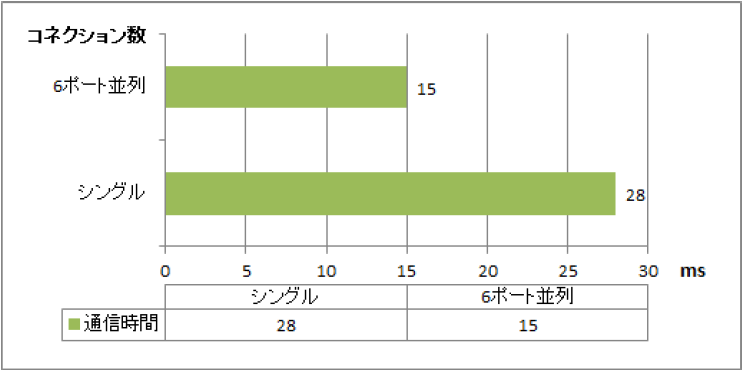

・In the case of parallel connections
|
|
|
The maximum communication size of one packet for the Mitsubishi Q Series is approximately 900 words. Best performance is achieved by defining multiples of 900 tags per PLC. Please refer to the sample file for details. |
■Yokogawa Electric
Model used: FA-M3V
Communication area: D00001 - D10000
1. FA-M3 Ethernet General-purpose protocol (binary mode)

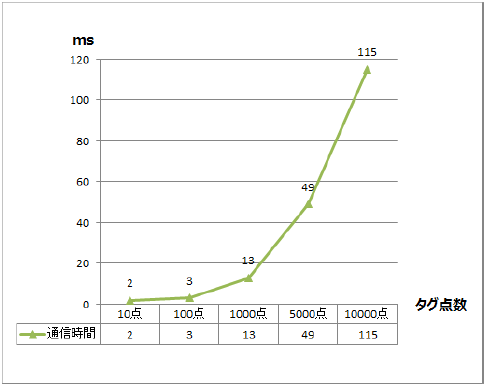

・In the case of one connection
|
|
2. FA-M3R Ethernet high-speed protocol (binary mode)

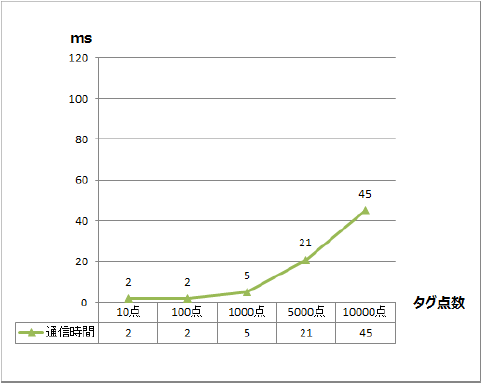

・In the case of one connection
|
|
|
The maximum communication size of one packet of the FA-M3 Ethernet general-purpose protocol is 64 words. The maximum communication size of one packet of the FA-M3R Ethernet high-speed protocol is four times that of general-purpose protocol, at 256 words. |
■Omron Ethernet
Model used: CJ2M CPU31
Communication area: DM00001 - DM10000

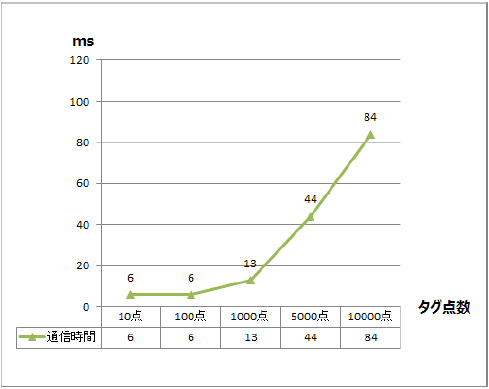

・In the case of one connection
|
|
