Connection procedure (Ethernet)

overview

This article explains how to connect to each Keyence device via Ethernet.





Compatible models

List of compatible devices

Connection method

Series/Model etc.

Connection Unit

Supported drivers

Ethernet

KV-700

・KV-LE20A

Keyence - Ethernet

KV-700 LE20A



[Connection protocol]

Host link communication

・KV-LE20

Keyence - Ethernet

KV-700 LE20



[Connection protocol]

Host link communication

KV-1000

・KV-LE20A

Keyence - Ethernet

KV-1000 LE20



[Connection protocol]

Host link communication

・KV-LE20

Keyence - Ethernet

KV-1000 LE20



[Connection protocol]

Host link communication

KV-8000/7500/7300

・CPU accessory port
・KV-EP21V

・KV-LE Equivalent to 21V

Keyence - Ethernet

KV-8000/7000/5000/3000



[Connection protocol]

Host link communication

KV-5000/5500

・CPU accessory port

・KV-LE21V
・KV-LE20V equivalent

Keyence - Ethernet

KV-8000/7000/5000/3000



[Connection protocol]

Host link communication

KV-3000

・KV-LE20V

Keyence - Ethernet

KV-8000/7000/5000/3000



[Connection protocol]

Host link communication

KV Nano Series

・KV-NC1EP

Keyence - Ethernet

KV nano



[Connection protocol]

Host link communication

NQ Series

・NQ-MP equivalent to 8L

ModCon-Ethernet

Modbus (Modbus6 digits)



[Connection protocol]

Modbus/TCP



attention

For combinations of CPU units and link units, please check with the device manufacturer to see if the model combination is actually possible. Also, please check whether communication is possible with the protocol used when connecting with our company for that combination.



(Reference material) Model list

series

Model etc.

KV Nano Series

KV-N14AR, KV-N14AT, KV-N14ATP, KV-N14DR, KV-N14DT, K V-N14DTP, KV-N24AR, KV-N24AT, KV-N24ATP, KV-N24DR, KV-N 24DT, KV-N24DTP, KV-N40AR, KV-N40AT, KV-N40ATP, KV-N4 0DR, KV-N40DT, KV-N40DTP, KV-N60AR, KV-N60AT, KV-N60ATP

etc.



Settings Dialog Details

Ethernet Common

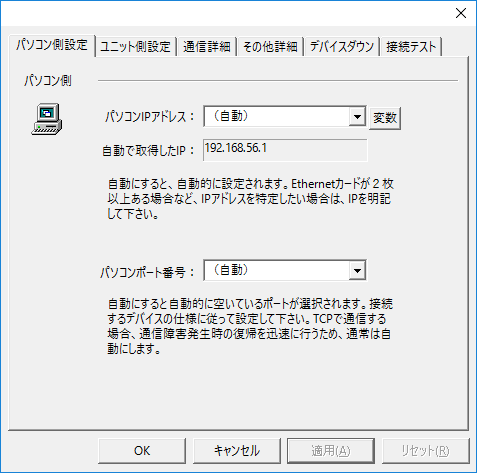

PC settings

c_plc_0456





•Computer IP address
The IP address of your computer. If you select Automatic, a default IP address will be set.



•Computer port number
Port number on the computer side. If you set it to "Automatic", an available port will be selected.
If you want to communicate using TCP instead of UDP, set it to Automatic.

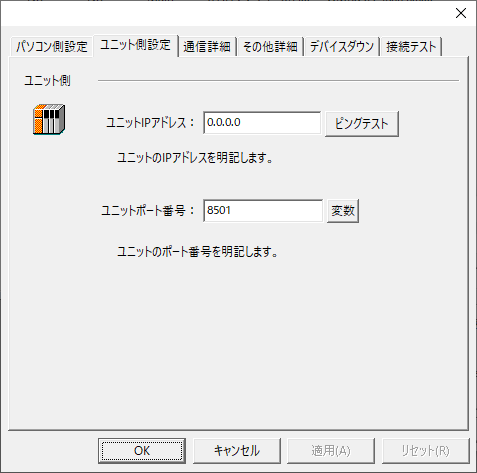

Unit side settings

c_plc_0457





•Unit IP Address
The IP address of PLC.



•Ping test
Perform a ping test. If successful, it means that the network is physically connected.



•Unit Port Number
PLC port number. You can also use an environment variable.

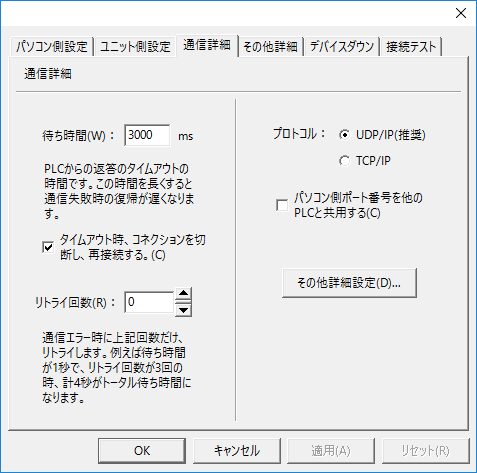

Communication details

c_plc_0458





•Waiting time
Response timeout from PLC.



•Retry count
When a communication error occurs, the system will retry the specified number of times.



•protocol
Select UDP or TCP.



•Share the PC port number with other PLCs
In the case of this PLC, this has no particular meaning.

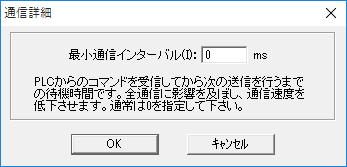

Other detailed settings

c_plc_0459





•Minimum Communication Interval
Specifies the waiting time on the PC side after receiving a device value from PLC until the next transmission.
