About the connection example

Please see below for an example of connection settings for this driver.

Applicable models etc.

explanation

This is an example of Ethernet connection settings with the iQ-F series.

Device List

The compatible devices are as follows (see here for how to view the device list).

device	keyword	Start address	explanation	unit	reading	Writing
Input Relay	X	000000	Hexadecimal	bit	○	○
Output Relay	Y	000000	Hexadecimal	bit	○	○
Internal Relay	M	000000	Decimal	bit	○	○
Special Relay	SM	000000	Decimal	bit	○	○
Latching Relay	L	000000	Decimal	bit	○	○
Annunciator	F	000000	Decimal	bit	○	○
Edge Relay	V	000000	Hexadecimal	bit	○	○
Link Relay	B	000000	Hexadecimal	bit	○	○
Special Link Relay	SB	000000	Decimal	bit	○	○
Step Relay	S	000000	Decimal	bit	○	○
Timer Contact	TS	000000	Decimal	bit	○	○
Timer coil	TC	000000	Decimal	bit	○	○
Integration Timer Contact	SS	000000	Decimal	bit	○	○
Accumulator timer coil	SC	000000	Decimal	bit	○	○
Counter Contact	CS	000000	Decimal	bit	○	○
Counter coil	CC	000000	Decimal	bit	○	○
Timer current value	TN	000000	Decimal	word	○	●
Current value of the integration timer	SN	000000	Decimal	word	○	●
Counter current value	CN	000000	Decimal	word	○	●
Data Register	D	000000	Decimal	word	○	●
Special Registers	SD	000000	Decimal	word	○	●
Link Register	W	000000	Hexadecimal	word	○	●
Special Link Register	SW	000000	Hexadecimal	word	○	●
Index Register	Z	000000	Decimal	word	○	●
File register (current block)	R	000000	Decimal	word	○	●

Binary and ASCII protocols

Mitsubishi Electric's communication protocol can be selected from "Binary Code Communication" and "ASCII Code Communication". Binary code communication has a shorter packet length, so it allows for faster communication. Unless there is a specific reason not to, we recommend binary code communication.

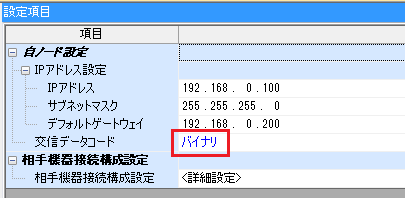

For example, if you are using GX-Works3, set it in the network parameter settings.

c_plc_0136

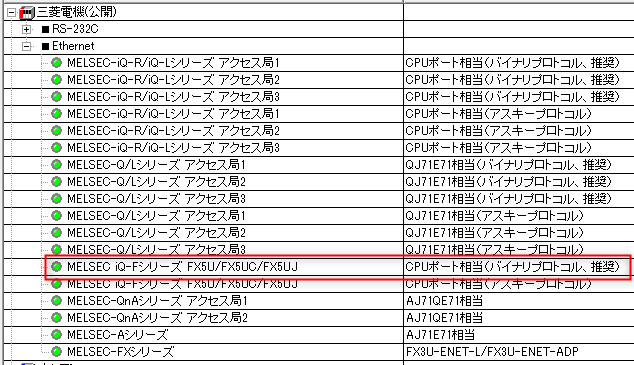

To communicate in binary code, select the binary protocol when selecting the following units.

c_plc_0137

iQ-F series FX5 CPU equivalent to built-in port

iQ-F series FX5 CPU equivalent to built-in port
