Connection method

Series/Model etc.

Connection Unit

Supported drivers

Ethernet

Q Series

QnUDE series

QnUDV series

L-Series

・CPU accessory port

・QJ71E71-100

・QJ71E71-B2

・QJ71E71-B5

・Equivalent to QJ71E71

Mitsubishi Electric (public) -Ethernet

MELSEC-Q/L Access stations 1 to 3

*Binary and ASCII protocols can be selected

[Connection protocol]

MC Protocol

iQ-R series

iQ-L series

・CPU accessory port

・Equivalent to RJ71EN71

Mitsubishi Electric (public) -Ethernet

MELSEC-iQ-R/iQ-L Access stations 1 to 3

*Binary and ASCII protocols can be selected

[Connection protocol]

SLMP (MC Protocol)

iQ-F Series FX5

・Equivalent to CPU attached port

Mitsubishi Electric (public) -Ethernet

MELSEC- iQ-F series FX5

*Binary and ASCII protocols can be selected

[Connection protocol]

MC Protocol

QnA Series

・AJ71QE71N-B2

・AJ71QE71N-B5T

・Equivalent to AJ71QE71

Mitsubishi Electric (public) -Ethernet

MELSEC-QnA Series Access Stations 1-2

*Binary and ASCII protocols can be selected

[Connection protocol]

MC Protocol

A-Series

・Equivalent to AJ71E71

Mitsubishi Electric (public) -Ethernet

MELSEC-A series

[Connection protocol]

MC Protocol

FX3U Series

・FX3U-ENET-L

・FX3U-ENET-ADP

Mitsubishi Electric (public) -Ethernet

MELSEC-FX series

[Connection protocol]

MC Protocol

For combinations of CPU units and link units, please check with the device manufacturer to see if the model combination is actually possible. Also, please check whether communication is possible with the protocol used when connecting with our company for that combination.

series

Model etc.

iQ-R series

R04CPU, R08CPU, R16CPU, R32CPU, R120CPU, etc.

Q Series

Q03UDVCPU, Q04UDVCPU, Q06UDVCPU, Q13UDVCPU, Q26UDVCPU, Q00UJCPU, Q00UCPU, Q01UCPU, Q02UCPU, Q 03UDCPU, Q04UDHCPU, Q06UDHCPU, Q10UDHCPU, Q13UDHCPU, 20UDHCPU, Q26UDHCPU, Q03UDECPU, Q04UDEHC PU, Q06UDEHCPU, Q10UDEHCPU, Q13UDEHCPU, Q20UDEHCPU, Q26UDEHCPU, Q50UDEHCPU, Q100UDEHCPU, Q00 JCPU, Q00CPU, Q01CPU, Q02CPU, 02HCPU, Q06HCPU, Q12HCPU, Q25HCPU, Q02CPU-A, Q02HCPU-A, Q06HCPU-A

etc.

iQ-L series

L04HCPU, L08HCPU, L16HCPU, L32HCPU, etc.

L-Series

L02SCPU, L02SCPU-P, L02CPU, L02CPU-P, L06CPU, L06CPU-P, L26CPU, L26CPU-P, L26CPU-BT, L26CPU-PBT

etc.

QnA Series

Q2ACPU, Q2ASHCPU, Q2AS1CPU, Q2ASCPU-S1, Q3ACPU, Q4ACPU, Q4ARCPU

etc.

A-Series

A1CPU, A1CPUP21, A1CPUR21, A2CPU, A2NCPU, A2CPUP21, A2CPUR21, A2CPU-S1, A2CPUP21-S1, A2CPUR21-S1, A3CPU, A3CPUP21, A3CPUR21, A1NCPU, A1NCPUP21, A1NCPUP21- S3, 1NCPUR21, A2NCPU, A2NCPUP21, A2NCPUP21-S3, A2NCPUR21, A2NCPU-S1, A2NCPUP21-S1, A2NCPUP21-S4, A2NCPUR21-S1, A3NCPU, A3NCPUP21, A3NCPUP21-S3, A3NCPUR21

etc.

FX0 Series

FX0-14MR, FX0-20MR, FX0-30MR, FX0-14MT, FX0-20MT, FX0-30MT, etc.

FX2 Series

FX2-16MR, FX2-16MS, FX2-16MT, FX2-24MR, FX2-24MS, FX2-24MT, FX2-32MR, FX2-32MS, FX2-32MT, FX2-48MR, FX2-48MS, FX2-48MT, FX2-64MR, FX2-64MS, FX2-64MT, FX2-80MR, FX2-80MS, FX2-80MT, FX2-128MR, FX2-128MT

etc.

FX3U Series

FX3U-128MR/ES, FX3U-128MT/ES, FX3U-128MT/ESS, FX3U-16MR/DS, FX3U-16MR/ES, FX3U-16MT/DS, FX3U-16MT/DSS, FX3U-16MT/ES, FX3U-16MT/ESS , FX3U-32MR/DS, FX3U-32MR/ES, FX3U-32MR/UA1, FX3U-32MS/ES, FX3U-32MT/DS, FX3U-32MT/DSS, FX3U-32MT/ES, FX3U-32MT/ESS, FX3U-48MR/DS, FX3U-48 MR/ES, FX3U-48MT/DS, FX3U-48MT/DSS, FX3U-48MT/ES, FX3U-48MT/ESS, FX3U-64MR/DS, FX3U-64MR/ES, FX3U-64MR/UA1, FX3U-64MS/ES, FX3U-64MT/DS, FX 3U-64MT/DSS, FX3U-64MT/ES, FX3U-64MT/ESS, FX3U-80MR/DS, FX3U-80MR/ES, FX3U-80MT/DS, FX3U-80MT/DSS, FX3U-80MT/ES, FX3U-80MT/ESS

etc.

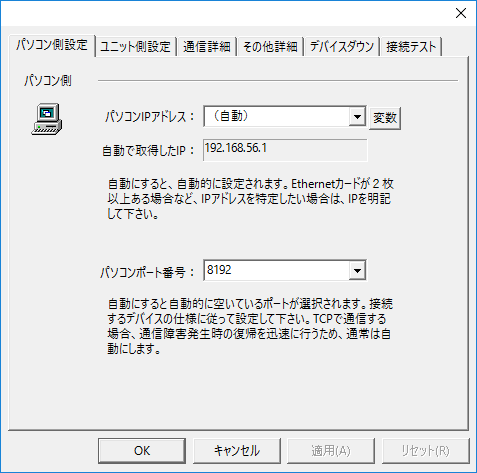

PC settings

•Computer IP address
The IP address of your computer. If you select Automatic, a default IP address will be set.

•Computer port number
Port number on the computer side. If you set it to "Automatic", an available port will be selected.
If you want to communicate using TCP instead of UDP, set it to Automatic.

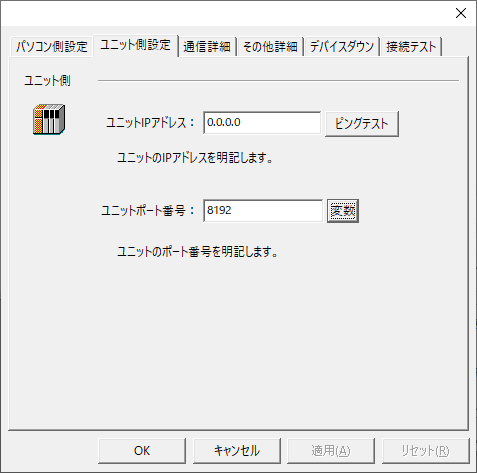

Unit side settings

•Unit IP Address
The IP address of PLC.

•Ping test
Perform a ping test. If successful, it means that the network is physically connected.

•Unit Port Number
PLC port number. You can also use an environment variable.

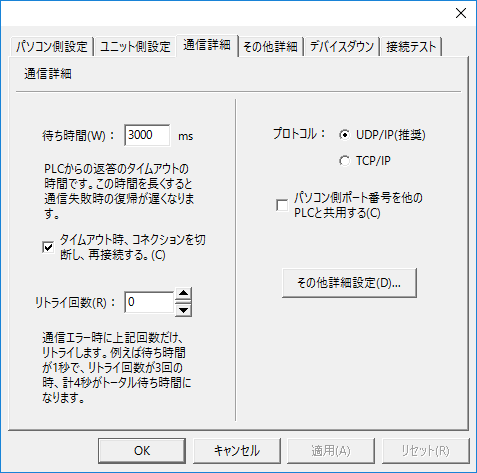

Communication details

•Waiting time
Response timeout from PLC.

•Retry count
When a communication error occurs, the system will retry the specified number of times.

•protocol
Select UDP or TCP.

•Share the PC port number with other PLCs
In the case of this PLC, this has no particular meaning.

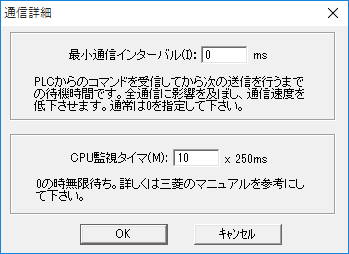

Other detailed settings

•Minimum Communication Interval
Specifies the waiting time on the PC side after receiving a device value from PLC and before the next transmission.

•CPU Watchdog Timer
Specifies the waiting time on the PLC side from when it receives a command from the PC until it returns a response to that command. If you are referencing other PLC devices via MELSECNET or CC-Link, be sure to set an appropriate time (if you set the CPU monitoring timer to 0 and the other PLC goes into a state where its power is cut off, Ethernet communication itself will be disabled).
For more information, please refer to the PLC manual.
