Connecting and disconnecting from PLC

<< Click to Display Table of Contents >>

Manual > Server Creation Guide > Tag Edition > Function Explanation >

Connecting and disconnecting from PLC

About connecting and disconnecting from PLC

The connection with PLC is established when you change from offline to online.

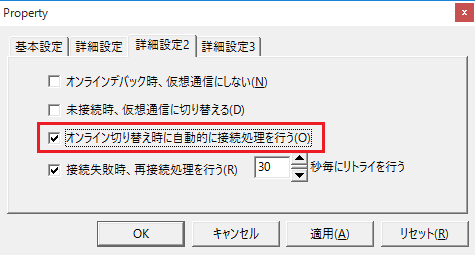

If you want to connect at your own timing from the application, uncheck "Automatically process connection when switching online."

You can also connect and disconnect from the outside using the unit's system property "Connect". For details, see System Properties.



c_tag_0065

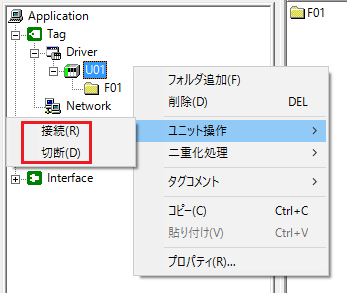

Manual connection switching can be done from the menu of each unit.



c_tag_0066
