Change the number of header lines

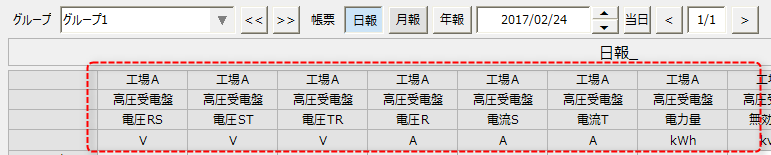

The default setting for the daily report screen (report screen) is to display the header in four lines, as shown below.







If you want to change the number of header lines, you can do so by following the steps below. As an example, we will change the number of header lines to 2.



1.Open the Summary Master and modify the definition of the ReportHeaders property to 2.



(Summary Master)

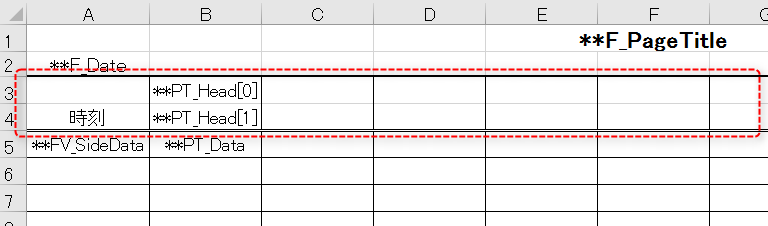

2.Change the number of lines in the layout master header to two.

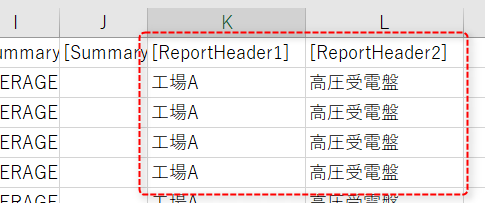

3.For the header definition of the tag field master file, only [ReportHeader1] and [ReportHeader2] should be used, and the [ReportHeader3] and [ReportHeader4] columns should be deleted. Also, modify the calculated field master file in the same way if necessary.
