Merge cells in a print layout

Merge adjacent cells in header titles when printing

By adding "_JOINT" to the end of each keyword in the Layout Master File, you can automatically merge and print cells when the characters in adjacent cells match.



Example: In the example below, the header titles for the first and second lines are set as follows:



**PT_Head_JOINT[0]

**PT_Head_JOINT[1]

**PT_Head[2]

**PT_Head[3]

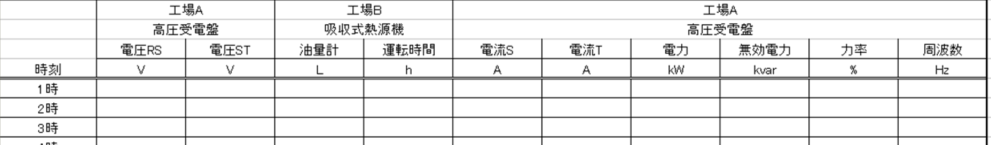

(Display example)

p_summary_0033
