overview
Here we will explain the process of writing the contents of data stored in a table in a database to tags in bulk.
By using this function, for example, recipe information stored on a table can be written to a PLC in bulk via tags.
Action used: Batch transfer (ODBC → Tag) Action
Download the sample
The creation examples shown on this page are provided with samples.
The sample can be downloaded from below.
The above sample includes a SQL file (DDL) to generate the table. Use it as a reference when creating the table.
Operation check
This sample requires a database to be prepared. Once the database is prepared, please bring the sample server configuration file online from FA-Server (yellow arrow).
After going online, please confirm that when you write TRUE to U01.F01.T01, the value set in the database table is written to the tag. To check the written value, start monitoring with a tag operation or use the tag monitor.
(Example of table data)

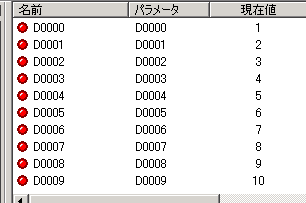

(Example written on tag)
Setup Procedure
Tag configuration

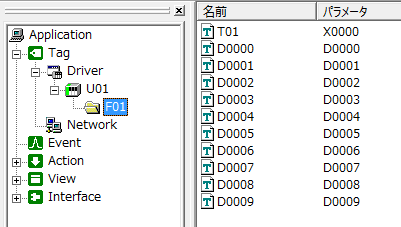

1.Set tags.
Tag Name |
address |
the purpose |
|---|---|---|
U01.F01.T01 |
X0000 |
A tag that triggers an action |
U01.F01.D0000～D0009 |
D0000 to D0009 |
Tags to be written in bulk |
Action Settings

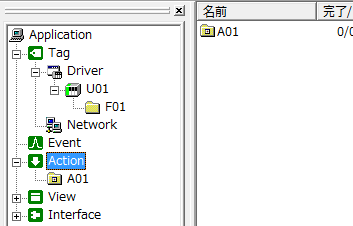

1.Register the Batch transfer (ODBC → Tag) action "A01".
2.Add a field to A01.

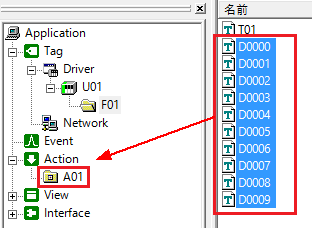

Drag and drop the
tag into A01. This action allows you to register tags simply by dragging and dropping them.

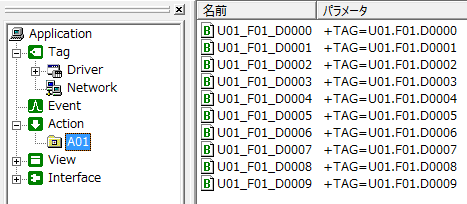

Field created.
3.Batch transfer (ODBC → Tag) Action property settings and table creation
Create the target table in the database.
In this example, a table is created with the following contents:
Table name: BATCH_TABLE
Key field name: BATCH_NAME
Value field name: BATCH_VALUE
(Field setting example for SQLServer2017)
The recommended data types for each connectable DBMS are described in "Database connection settings" in Appendix.
Next, set up the ODBC data source from the Batch transfer tab of the action. The ODBC setting procedure can be performed using the same operations for each ODBC. For ODBC settings, please refer to the description in "ODBC Settings" in the common settings of the action.

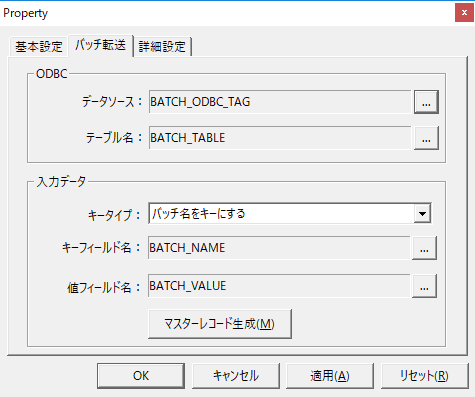

In this example, the data source is defined with the name "BATCH_ODBC_TAG", and the table name to connect to is specified as "BATCH_TABLE" created above.
When setting the input data, set the name of the field on the database side that you want to match.
4.Writes a key value into a key field.
From the

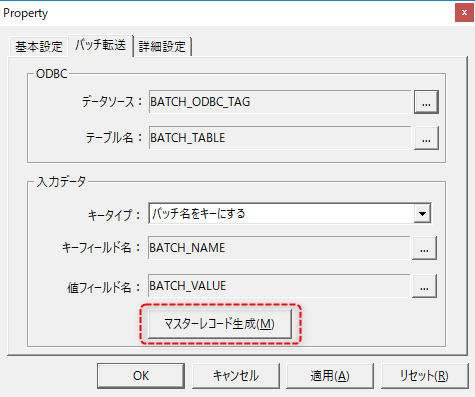

Batch transfer tab, click the "Generate Master Record" button to write the key batch name to the database.
The following screen shows the batch name correctly written to the database (an example for SQLServer2017).
Event Settings
1.Create a Tag event to perform the action.

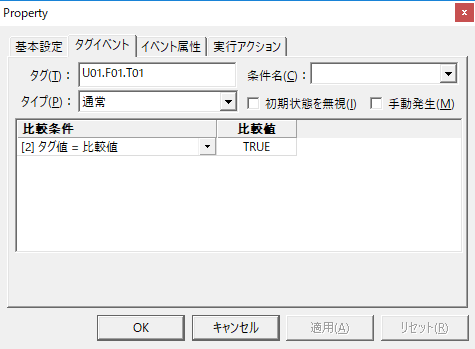

In this example, we will set the event to occur when U01.F01.T01 becomes TRUE.

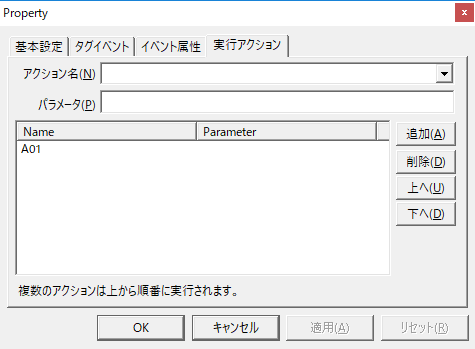

Set the execution action to "A01".
