overview
This section explains the server process that takes screenshots of the PC on which FA-Server is running.
Action used: Screenshot action
Download the sample
The creation examples shown on this page are provided with samples.
The sample can be downloaded from below.
Operation check
Load the sample server configuration file from FA-Server and bring the application online (yellow arrow).
After going online, write TRUE to U01.F01.T01 and check if the screenshot image file is generated.
Setup Procedure
Tag configuration

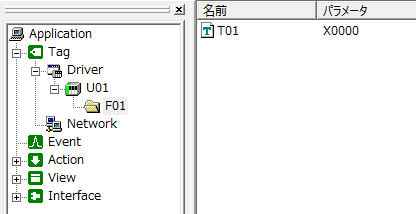

1.Set tags.
Tag Name |
address |
the purpose |
|---|---|---|
U01.F01.T01 |
X0000 |
A tag that triggers an action |
Action Settings

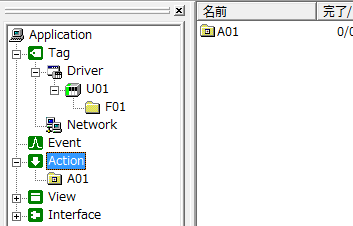

1.Register the screenshot action "A01".

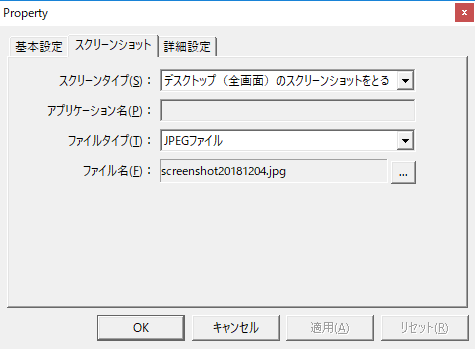

2.From the Screenshot tab, configure the screenshot settings.
•Screen type: Take a screenshot of your desktop (full screen).
•File type: JPEG file
•Filename: screenshot.jpg (date will be added)
Event Settings
1.Create a Tag event to perform the action.
In this example, we will set the event to occur when U01.F01.T01 becomes TRUE.
Set the execution action to "A01".
