overview

This is a setting example for connecting to the CS1 series via Ethernet. In this connection example, communication is performed using the IP address table method.

Model used

item	Model etc.
PLC	CS1G
Communication Unit	CS1W-ETN21

Configuration environment

item	environment
OS	Windows7 Professional 64Bit
tool	CX-Net Ver 3.5.5.0
tool	CX-Programmer Ver9.51

Configuration details

item	setting	Setting items	Configuration Example
PLC side settings	Setting with switches and tools	IP address	192.168.0.100
		Subnet mask	255.255.255.0
		Port number	9600
		FINS Network Address	1
		FINS Node	100 (the end of the IP address)
		IP address conversion method	IP address table method
PC settings	Unit Settings	IP address	192.168.0.1
	Unit Settings	Port number	9600
	Folder and communication test settings	Source Network Number	000
		Source Node	999
		Destination network number	000
		Destination Node	999

* Most of the settings on the computer will be adjusted to match the settings on the unit.

In this connection example, the IP address conversion method is the "IP address table method." For Ethernet communication cards older than ETN21, the "auto-generation method" cannot be used, so please refer to this setting example. If you want to use the "auto-generation method" with ETN21 or later, please refer to the connection example in "Connection example [CS1 series/auto-generation method]".

PLC side settings

Configure the "CS1W-ETN21" using the switch on the bottom and the "CX-Programmer".

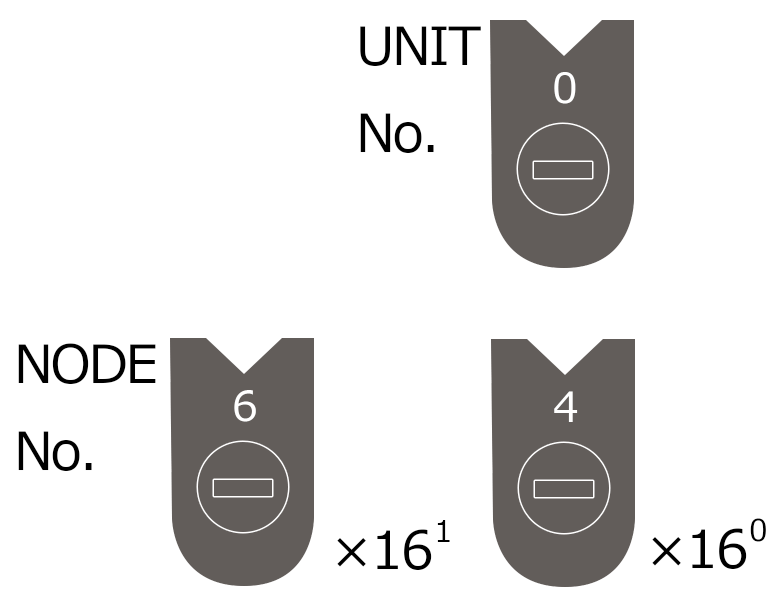

1.Set the front switch as follows:
Specify the end of the IP address with the front switch. There are two switches, 16(1) and 16(0), which are hexadecimal switches.
In this setting example, the last digit of the IP address is 100, so when converted to hexadecimal, "100" becomes "64", so set 16(1) to "6" and 16(0) to "4".

c_plc_0230

switch	explanation	Setting contents
UNIT No.	Unit Number	0
NODE No.　X16(1)	Node Number *Usually set the last value of the IP	6
NODE No.　X16(0)	Node Number *Usually set the last value of the IP	4

If you select an ETN01 or similar unit for the Ethernet unit, set the IP address using the rotary switch on the back of the unit. For details on the switch settings, refer to the ETN01 manual.

2.In "CX-Programmer", select "CX-Net (Network Settings)" from the [Tools] menu and start "CX-Net".
For more information about "CX-Net" and "CX-Programmer", please refer to the manufacturer's manual.

3.Select "Project" - "Create New" to create a project.

4.Select "Project" - "Add PLC" and in the dialog that appears, set the PLC model to "CS1G" and the network type to "Toolbus" and click "OK".

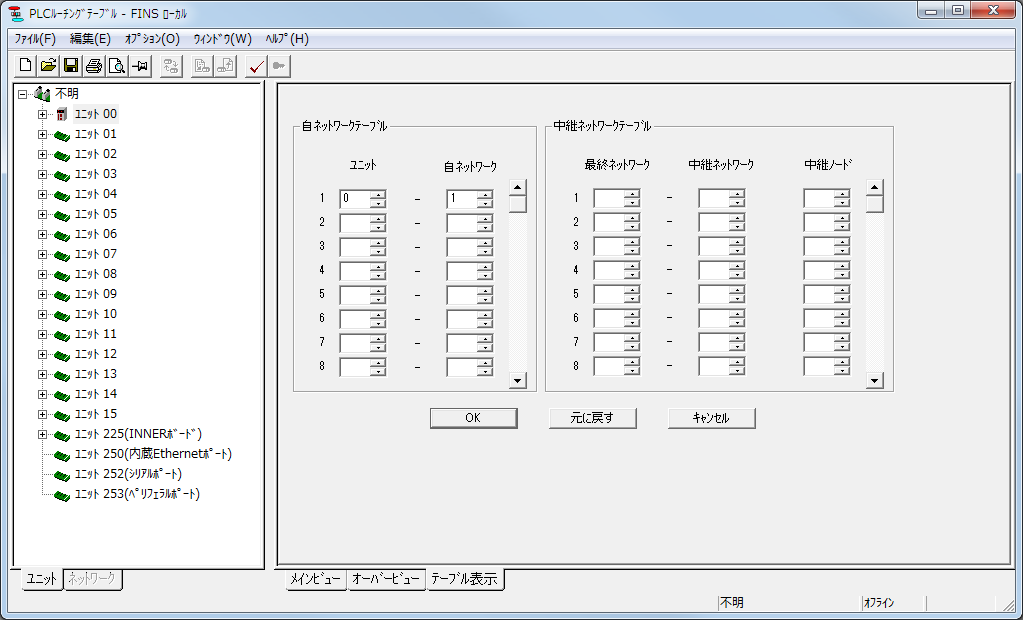

5.Select "Online Connection" from the "PLC" menu to connect to the PLC, select "Routing Table" - "Settings", and confirm that the local network number is set to 1.
c_plc_0231

6.In "CX-Programmer", select "PLC" - "Online connection" to connect to PLC.

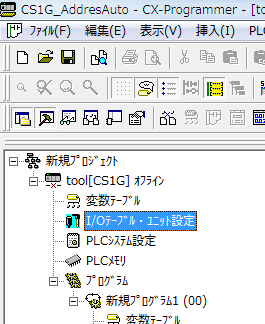

7.Double-click "I/O Table Unit Settings" from the tree to display the settings screen.
c_plc_0232

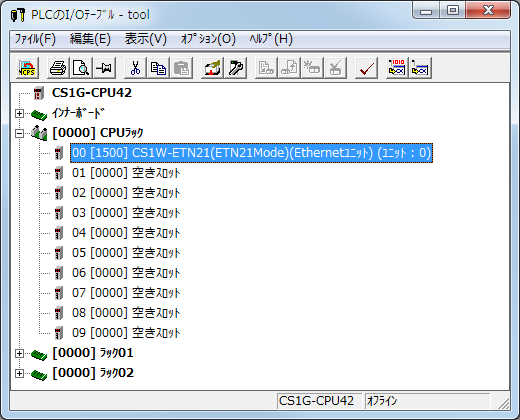

8.Create an I/O table from the displayed setting screen.
In this setting example, Ethernet is installed in slot 0.
c_plc_0233

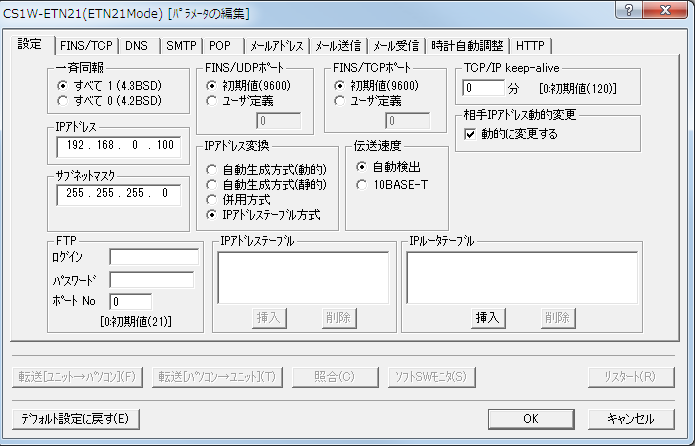

9.Double-click the added Ethernet unit to display the unit's setting screen and configure it as follows:
c_plc_0241

setting	Setting contents
IP address	192.168.0.100
Subnet mask	255.255.255.0 (Please set according to your environment)
IP Address Translation	IP address table method

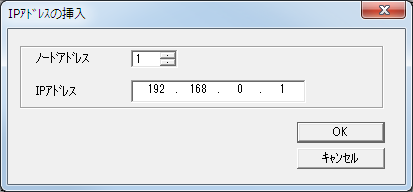

10.Click the "Insert" button in the IP address table to set the address.
c_plc_0242

setting	Setting contents
Node Address	1
IP address	192.168.0.1

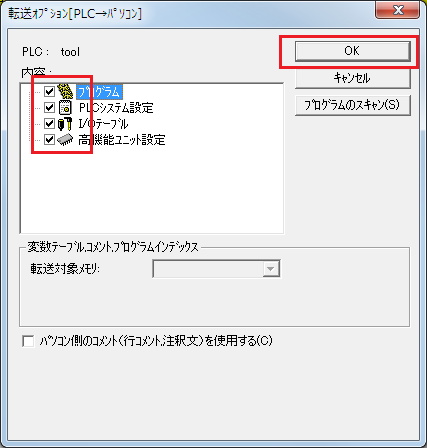

11.Display the transfer screen by going to "PLC" - "Transfer" - "Transfer (PC → PLC)", check the necessary items, and write the settings.
c_plc_0235

PC settings

Use the Server application to connect to the PLC for which you have set up communications.

1.Right-click "Application" - "Driver" in the tree and select Add Driver.

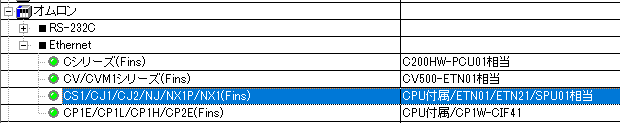

2.Select the following units from the displayed driver list and add them:
c_plc_0236

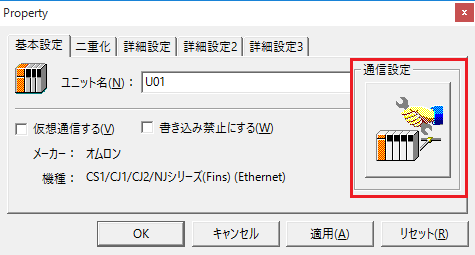

3.Open the properties of the added unit (U01) and click Communication Settings.
c_plc_0238

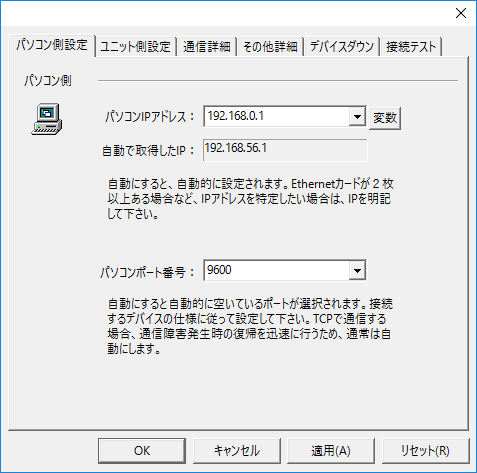

4.Configure the following in "PC Settings"
c_plc_0243

setting	Setting contents
Computer IP address	192.168.0.1
Computer port number	9600

5.Set the following in "Unit side settings"
c_plc_0225

setting	Setting contents
Unit IP Address	192.168.0.100
Unit Port Number	9600

6.Select "Ping Test" to check if the ping goes through normally.
If you see a message like "Ping test is success～", the test was successful.

7.Select the protocol in "Communication Details"
c_plc_0226

setting	Setting contents
protocol	UDP (recommended)

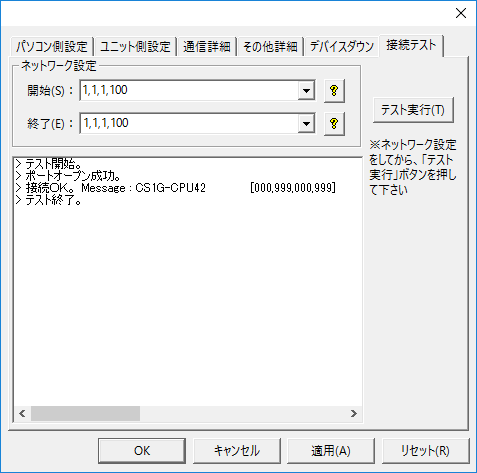

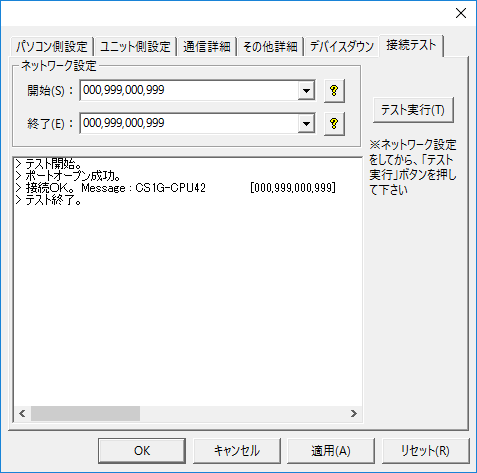

8.Perform a connection test to check the connection
c_plc_0239

If a message such as "Connection OK" is displayed, the connection is confirmed to be OK.

When testing the connection and setting up the folder, do not forget to specify the node (network settings).

•Source/Destination Network Number: Please specify the network number. Specifying 000 will indicate your own network.

•The source/destination node sets the node. If you specify 999, the last part of the IP address will be the node.

If you connect using the settings in this example, you can also connect by specifying "1,1,1,100".

c_plc_0240
