FA-Server startup options

<< Click to Display Table of Contents >>

Manual > Monitoring system construction guide > System installation and operation > System configuration and operation (runtime execution) > Server runtime execution >

FA-Server startup options

About startup options for FA-Server

You can specify the startup conditions by adding option information when launching FA-Server. Also, the startup option specification takes priority over the settings in the "Auto Start Settings".



The format for specifying options is as follows:


/option1/option2□.../optionX


In the above format, "□" represents a half-width space.

specifies the path to the server configuration file you want to open at startup.

/option1 to /optionX are option specifications.







The options that can be specified in /option1 to /optionX are as follows.



option

explanation

/online_debug

Start in online debug mode.

/online_monitor

Start in online monitor mode.

/online_fast

Launch in online fastest mode.

/lockstop:[password]

Specify the password to use when offline.

Example: /lockstop:abc

/startupwaitingtime

Startup wait time.

/licensechecktimeout

License check timeout period.

/editor

Start in edit mode. In edit mode, you can only edit the configuration file. If you want to rewrite the configuration file while online, you can start it as another process in edit mode and edit the configuration file.

/dupmain

Start it as the main machine with dual settings.

/dupsub

It will start up as a secondary machine with a duplicated setting.

/encrypt:[sourcefilename]

Encrypts the specified file. If you specify this option and run FA-Server, the screen will not be displayed, and the program will only encrypt the file and then exit. When running with this option, the program can be run even if another FA-Server is running. For details, see the description in "Encrypting script files (Script Ver2)".

Example) /encrypt:script.txt

/encryptout:[encryptfilename]

Specifies the output file name for the encrypted file generated above.

Example) /encryptout:script.enc





hint

When specifying the “FA-Server installation path” and “Server configuration file path”, if the path contains half-width spaces (such as “Program Files”), the entire path must be enclosed in double quotation marks.





hint

If you want to change the launch icon of a shortcut, open the shortcut's properties and select the icon you want to change from "Change Icon".

hint

You can launch FA-Server in edit mode by specifying the "/editor" option in the shortcut settings that launches FA-Server.

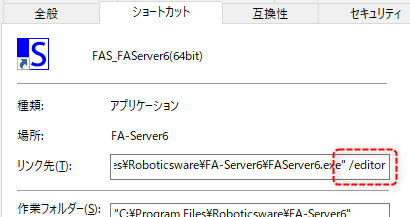

(Example of specifying "/editor")

ope_0097
