Operation on multiple PCs

Example of operation configuration

In addition to running FA-Client on the same PC as FA-Server, it can also run on a different PC.



Up to two FA-Client can be run at the same time.

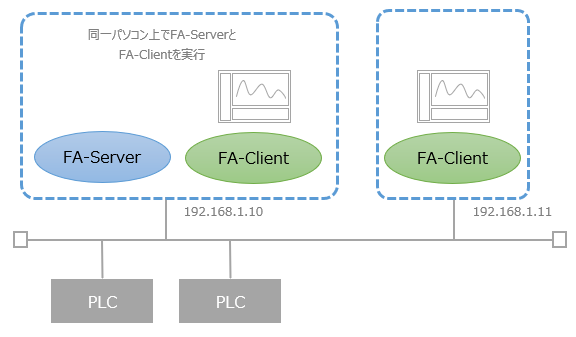

■ Run FA-Server and FA-Client on the server PC



tra_0665

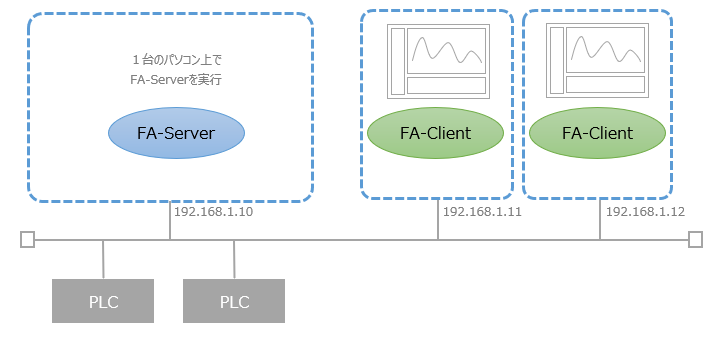

■Only run FA-Server on the server PC



tra_0666



Connection settings between FA-Server and FA-Client

If you are running FA-Client on multiple PCs, set the following in the FA-Client client configuration file (FAClient.txt).



Property Name

Contents

PSNode

Specify the IP address of the FA-Server to connect to. Specify the address set in Panel-Interface.

If the server and browser are running on different PCs, you must specify the server's IP address or node name.



example)

PSNode=192.168.1.10



PSPanelPort

You can specify the port number when connecting with FA-Server and Panel-Interface. If omitted, port 6001 will be used. In the case of a redundant configuration, specify the port number of the primary FA-Server.



example)

PSPanelport=6001







hint

For information on the FA-Client client configuration file, please refer to "Client Configuration Guide".
