Operation on one PC

Example of operation configuration

This configuration is a standalone configuration with only one PC.

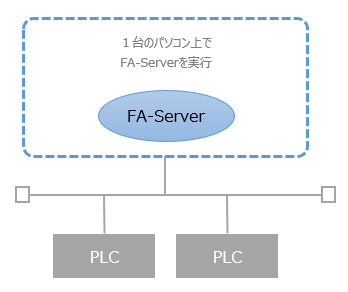

If you do not use FA-Client, only run FA-Server.

tra_0662

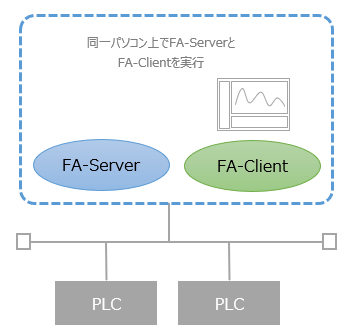

If you use FA-Client, you can also run FA-Server and FA-Client simultaneously on one PC.



tra_0663





Connection settings between FA-Server and FA-Client

If you are running FA-Server and FA-Client simultaneously on one PC, set the following in the FA-Client client configuration file (FAClient.txt).



Property Name

Contents

PSNode

Specify the IP address of the FA-Server to connect to. Specify the address set in Panel-Interface.

Furthermore, if the FA-Server you are connecting to is the same PC, you can leave this field blank.



example)

PSNode=192.168.1.10



PSPanelPort

You can specify the port number when connecting with FA-Server and Panel-Interface. If omitted, port 6001 will be used. In the case of a redundant configuration, specify the port number of the primary FA-Server.



example)

PSPanelport=6001







hint

For information about the FA-Client client configuration file, please refer to "Client Settings".
